Cast Steel Check Valve

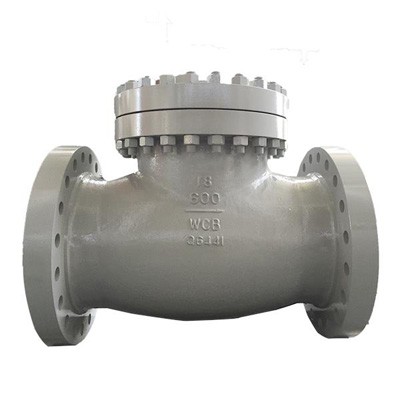

Cast Steel Swing Check Valve

Check Valve Size: NPS 2" - 56"
Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator.


  • Product Detail


VITAL VALVE is a proud check valve manufacturer and supplier that provides industrial check valves in various configurations and materials, including bronze, steel, and iron valves. Check valves are used to ensure that gases and liquids are flowing in one direction only. They essentially prevent the process flow from reverting, which forces the valve to close. Check valves are needed to stop backflow and protect rotating equipment and mechanical devices from the sudden backflow surges that may occur. Our check valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, RTJ or Butt Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
