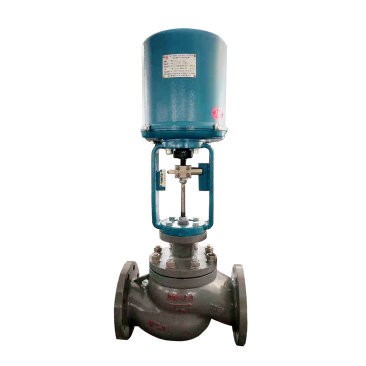

Electric Three Way Divider Control Valve

Three-way/divider control valve, adopts sleeve guide and pressure imbalance spool. The series of regulating valve is mainly used in several flow path media aggregation or separate control, two flow path into, one flow path out called three-way combined flow, on the contrary, one flow path into, two flow path out called shunt.

Design Standard:ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard: ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Thread Standard: GB/T 12716-1991 NPT, GB/T 7306-2000 PT, GB/T 7307-2001 G, DIN 2999, JIS B0203, NF E03-005, etc

Actuator Standard: NEMA ICS 14, BS EN 15714, DIN EN 61508,  JIS C 4035, EN 15714-3, GB/T 14048, GB/T 19599, etc


  • Product Detail

Pressure Range: PN16~PN64, ANSI 150lb~ANSI 300lb, JIS 10K

Size Range: DN20 (3/4”)~DN300 (12”)

Flanged Ends: ANSI B16.5, API 605, BS 4504, DIN 2501, JIS B2220,  EN 1092-1, GB/T 9112, GB/T 17241.6, etc

Butt-Weld BW Ends: ANSI B16.25, BS 1640, DIN 3239, JIS B2312, EN 12627, GB/T 17185, GB/T 9113, etc

Temperature Range: -196℃~560℃

Valve Material

  • Body Material WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, etc
  • Trim Material 304, 316, 316L, 2205, 2507, 2Cr13, 4Cr13, F11, F22, etc
  • Spool And Seat Material 304, 316, 316L, 410, 20, 17-4PH, Monel, Hastelloy, etc
  • Cage Material CF8, CF8M, etc
  • Stem Material 304, 316, 316L, 420, 17-4PH, etc

Design Feature

  • Trim Features double seat sleeve guide
  • Body Type three general formula
  • Bonnet Form standard, heat sink, low temperature, bellows
  • Flow Characteristics equal percentage, linear, quick opening

Inspection And Test

  • Leakage Rating ANSI B16.25, BS 1640, DIN 3239, JIS B2312, EN 12627, GB/T 17185, GB/T 9113, etc
  • Inspection And Testing Standard ANSI/FCI 70-2, API 598, BS EN 12266, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
