Forged Steel Globe Valve

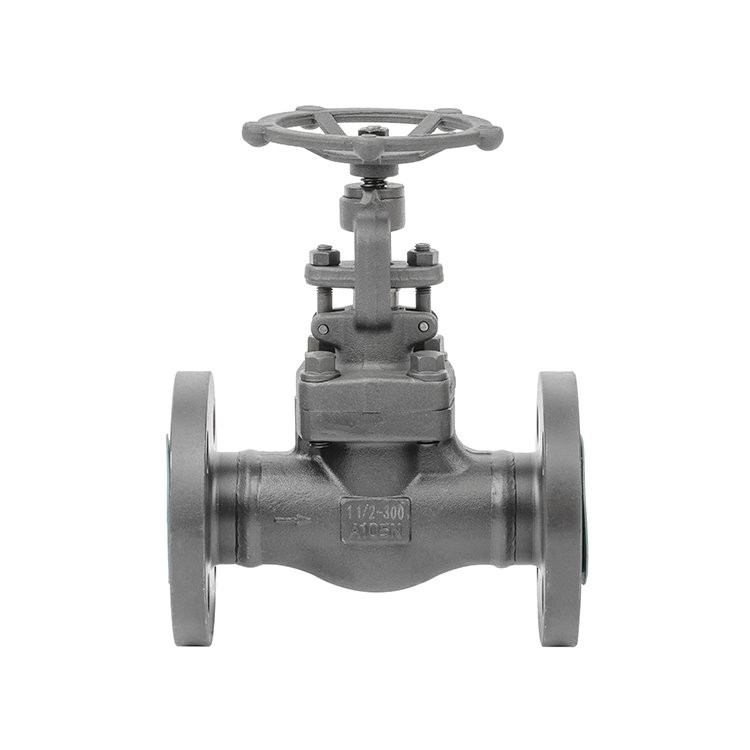

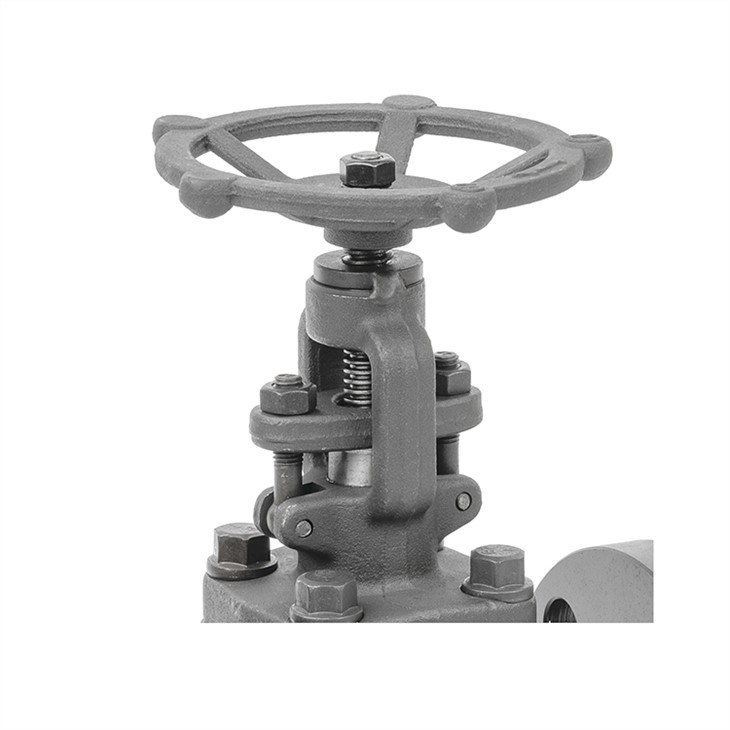

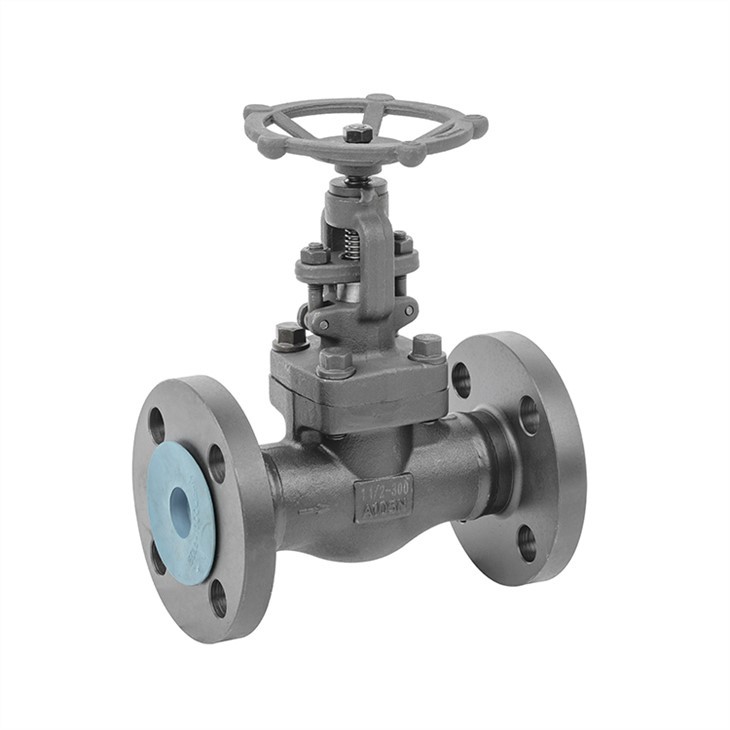

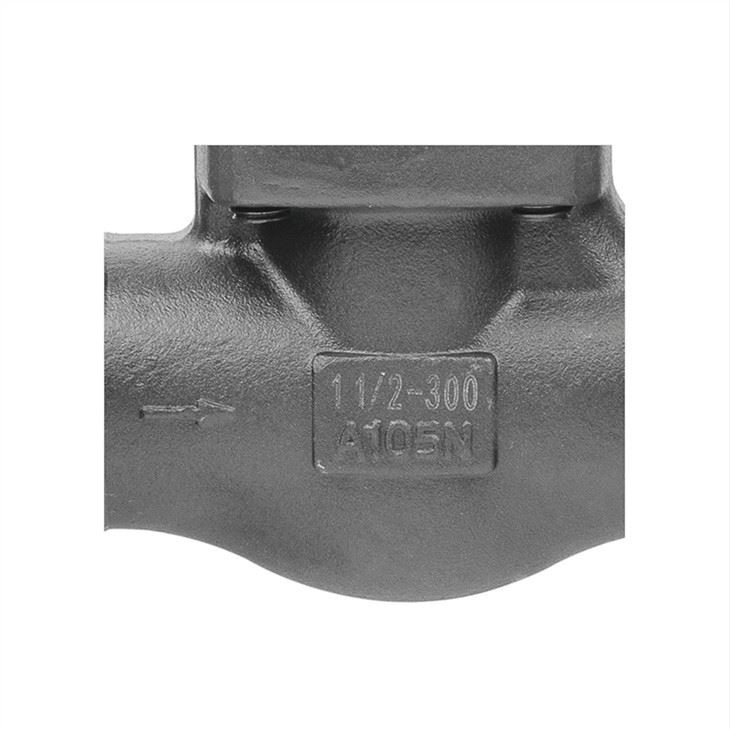

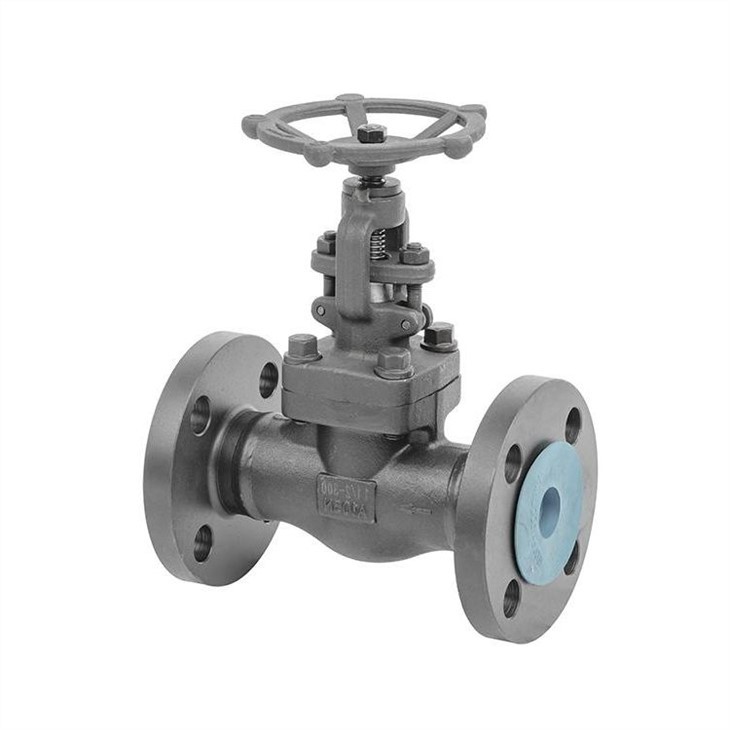

Forged A105 Welding Flange Globe Valve

Globe Valve Size: NPS 1/2" - 2"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: API 602
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator
  • Product Detail

Vital Valve manufactures Globe Valves that are primarily used to stop, start and regulate fluid flow in pipelines. Globe Valves can shut off fluid flows by moving the disc against the flow stream. These valves are particularly common in on-off services, but can be used for various applications. Vital Valves manufactures stainless steel globe valves, as well as a large variety of other material-type valves, including iron, cast steel and bronze. Styles include corrosion resistant, pressure seal and cryogenic globe valves.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, RTJ, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
