Triple Offset Butterfly Valve

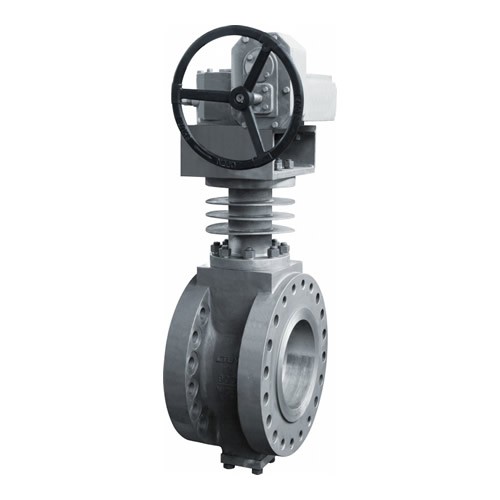

High temperature Triple Offset Butterfly Valve

Butterfly Valve Size: NPS 2" - 120"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: GGG40, GGG50, WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 609
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


  • Product Detail

The VITAL VALVE bi-directional seal high temperature triple offset butterfly valve design is recommended for industrial applications requiring reliable zero-leakage, bi-directional quick shut-off in harsh conditions of critical processes, steam isolation, and temperature extremes, especially when use of soft-seated materials in valves is limited.

Compared to ball valves, the VITAL VALVE high temperature triple offset butterfly valve is an affordable solution, particularly in larger diameter installations, that requires less structural support to ensure bubble tight shut-off. The result is a virtual zero leakage shut-off even in highair pressure, high-temperature, bidirectional pressure applications. Due to their quarter-turn movement for opening and closing, the valves are easy to automate and they can fulfill a quick closing time, which is often required in safety applications.


DESIGN FEATURES:

· Upper and Lower Bearings to maximize valve life

· Integral ISO mounting pad for easy valve operation no bracket needed

· Each valve is shell and seat pressure tested per industry standard API 598

· Available in Flange, Wafer and Lug styles

·Seat Materials: Multiple seat materials available


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
