1、 Overview of single seat regulating valve

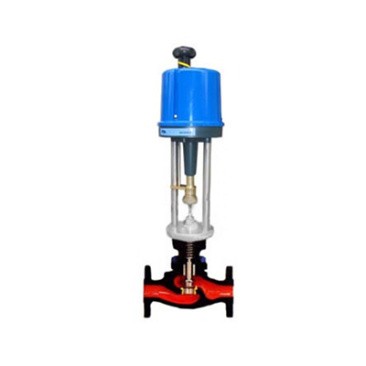

KHLS small caliber electric single seat regulating valve has a compact structure, and the flow channel is S-streamline, which makes it have small pressure drop loss, large flow, wide adjustable range, and high flow characteristic accuracy, meeting the IEC534 standard. The leakage of regulating valve shall comply with ANSI B16.104 standard. The regulating valve is equipped with PSL, 3610, 3810 and other electric actuators, which are compact in structure, large in output force, and meet the standard of GB/T13927-92.

2、 Main technical parameters of electric single seat regulating valve

Type: straight through single seat cast ball valve

Nominal diameter: 20, 25, 40, 50, 65, 80, 100, 150, 200mm

Nominal pressure: ANSI 125, 150, 300, 600

JIS 10、16、20、30、40K

PN1.6、4.0、6.4MPa

Connection type: flange connection: FF, RF, RJ, LG, groove type, embedded type

Flange standards: JIS B2201-1984, ANSI B16.5-1981, GB/T9112 ～ 9124-2000, etc

Welded connection: fillet weld SW

Materials: cast steel (ZG230-450), cast stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, ZG00Cr18Ni12Mo2Ti), titanium, etc
