Forged Steel Gate Valve

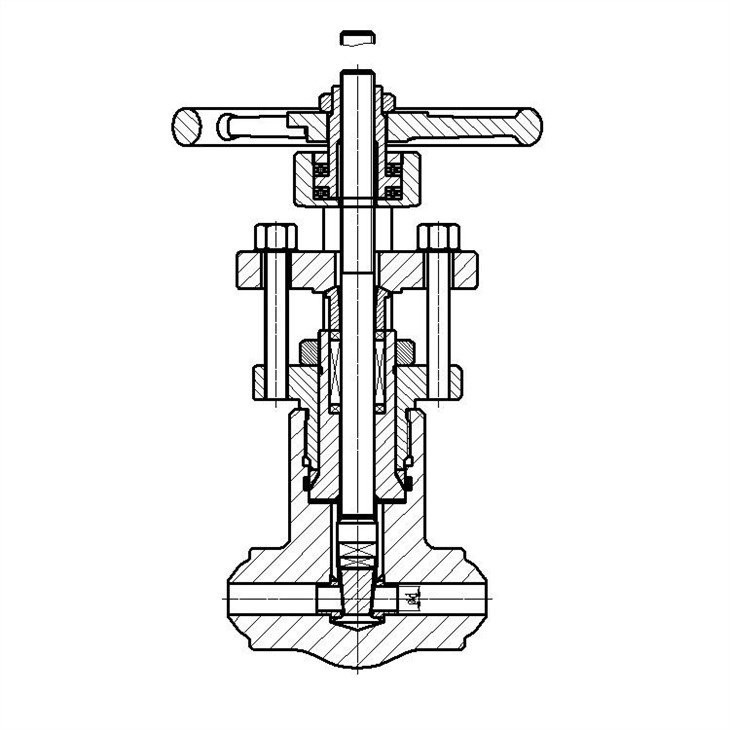

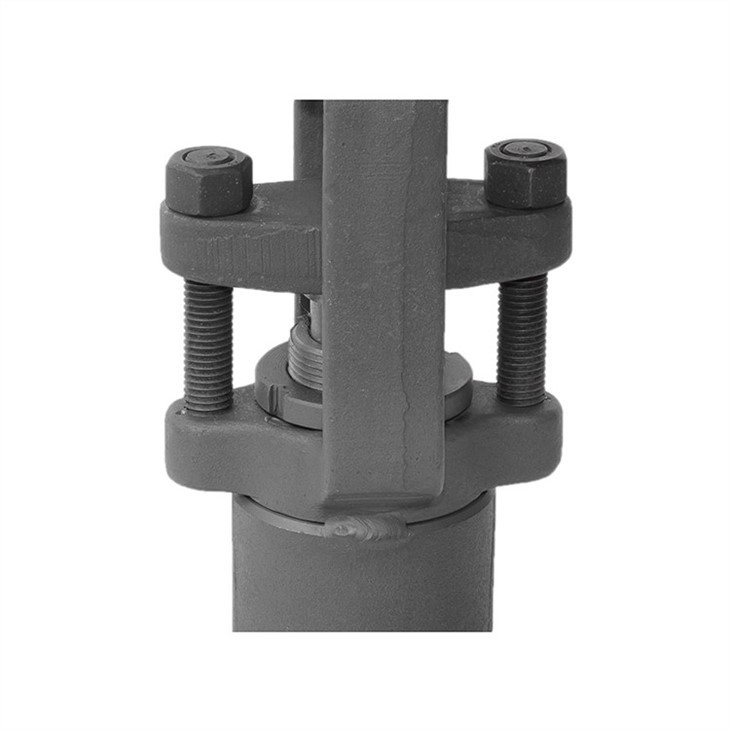

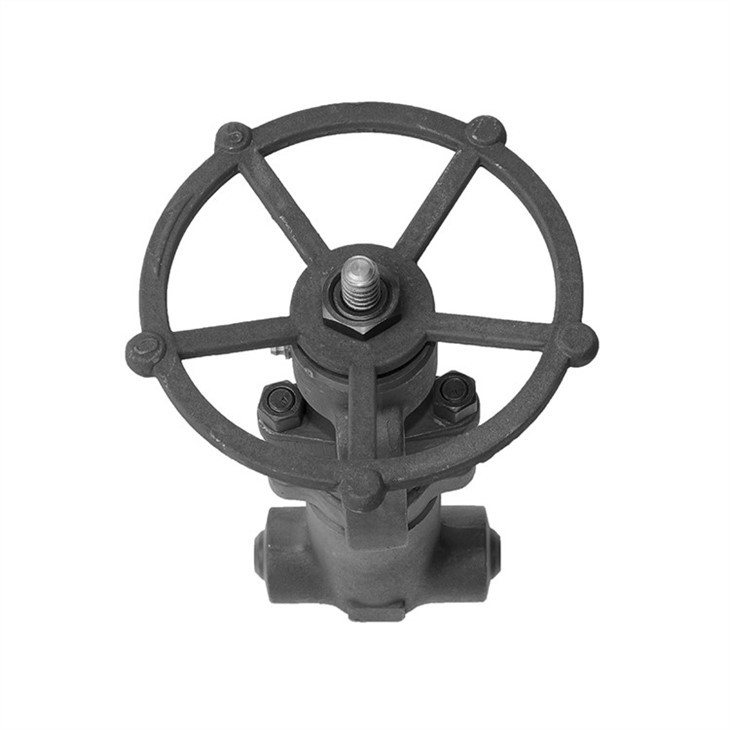

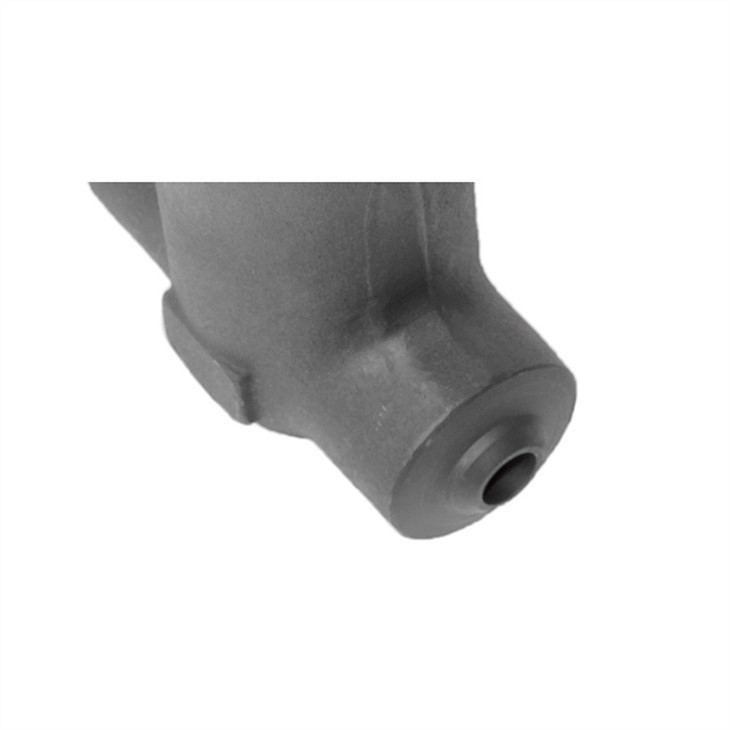

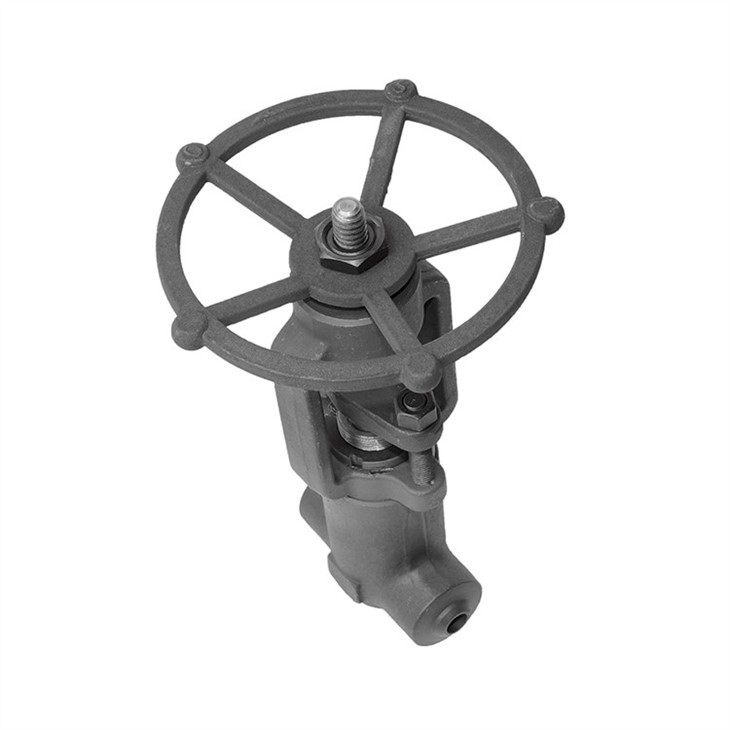

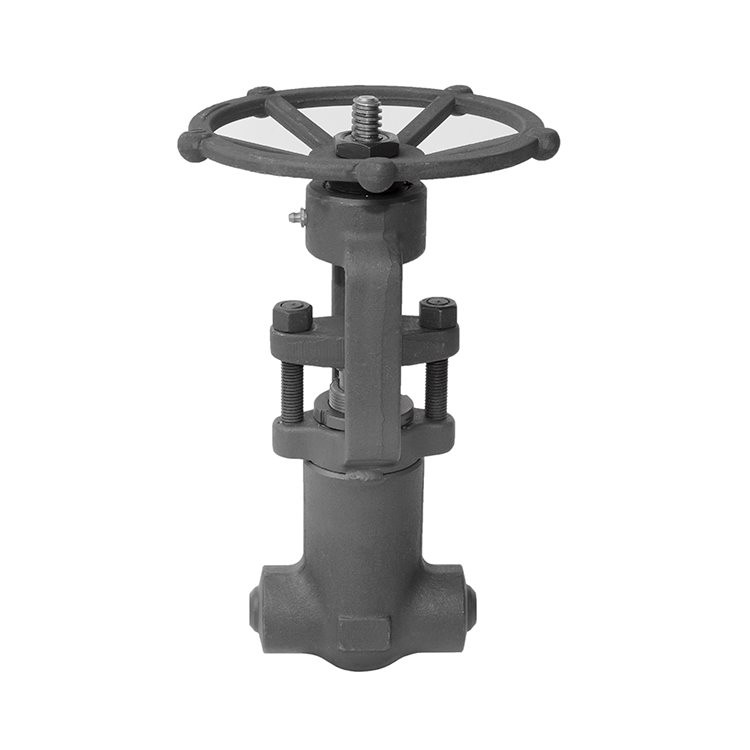

Self-sealing Butt Welded Gate Valve

Gate Valve Size: NPS 1/2" - 2"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: API 602
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator
  • Product Detail


Vital Valves is an industrial gate valve manufacturer and supplier in various materials such as: bronze, iron, stainless steel and cast steel. Vital Valves features high pressure Gate Valves in two different forms, parallel and wedge-shaped. Parallel Gate Valves are used to control the flow pressure while Wedge Gate Valves are most commonly used and allow for fluids to be tightly shut off. Our gate valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
