Plug Valve

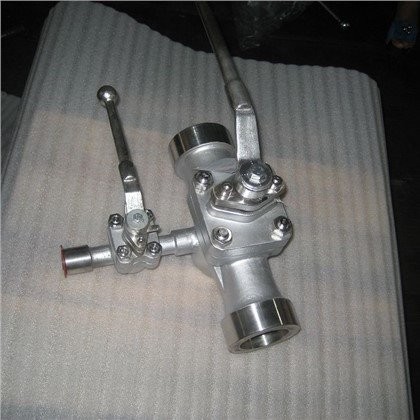

Single Flush Plug Valve

Plug Valve Size: NPS 2" - 56"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


  • Product Detail

VITAL plug valve is a cone or cylinder-shaped valve that uses a rotator inside the valve body to control flow of fluids. Plug valves have at least one hollow passageway to allow flow through
the open valve, most often horizontally. This type of valve is especially useful for high pressure scenarios.

DESIGN FEATURES:
>Inverted Plug
>Good sealing performance and lower valve torque
>By injecting lubricant into body cavity
>Deformed plug can be adjusted through the screw
>At the bottom
>Plug coated with PTFE/ENP
>Anti-static and fire safe design
>Available options: Jacket Sleeved Plug Valve, Lift Plug Valve, Eccentric Plug Valve, DBB Plug Valve, 3 Way Plug Valve, PFA Lined Plug Valve
