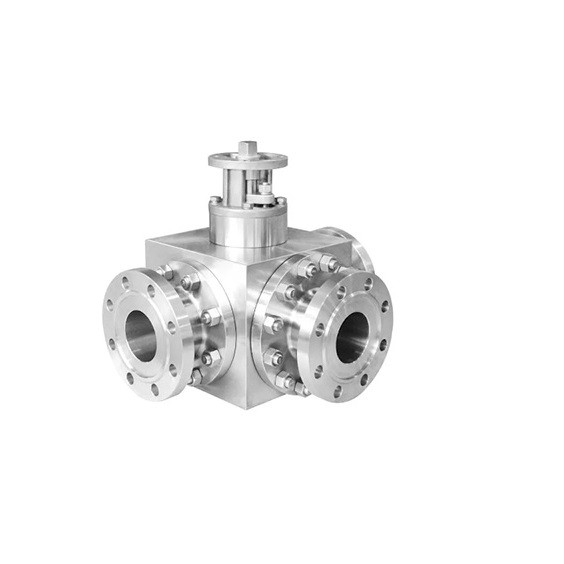

Three Way Ball Valve

Ball Valve Size: NPS 2" - 56"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

  • Product Detail
VITAL three-way ball valve has a flat flow channel, small fluid resistance and strong flow capacity. When switching, there is no retention of the medium, which will not cause secondary pollution. It can be equipped with electric actuator and pneumatic actuator to realize automatic control.

Valve body
Nominal diameter: DN15-DN300
Body material: WCB, 304, 316
Connection method: flange type, thread
Pressure level: PN1.6-4.0MPa
Structural form: floating ball core three-way T-type, three-way L-type

In-Valve Components
Seat seal: PTFE: -30℃~180℃
PPL: -30℃~250℃
Hard seal: -30℃~450℃ Cemented carbide: surface spray welding, tungsten nitride
Valve core material: 304, 316, 316; the surface of the hard seal ball core is spray welded, tungsten nitride
Stem Material: 304
Applicable medium: water, liquid, gas, oil, powder, steam, acid and alkali corrosive medium.
