Knife Gate Valve

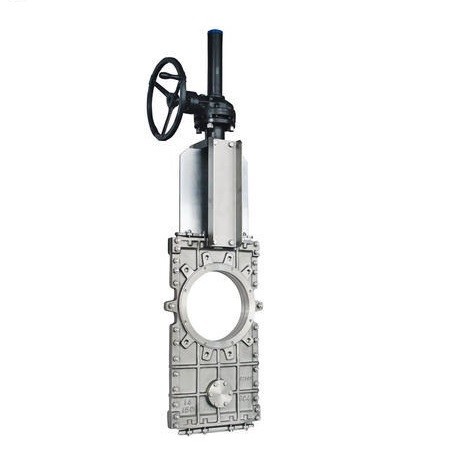

Through Conduit Knife Gate Valve

Size Range:DN50-DN600

Pressure Class:Max PN10 dependant on valve size

Flanged to suit :EN1092 /ASME B16.5/AS4087/JIS


Seats: EPDM/NBR/HNBR/Viton/Cr/PTFE

Body:GGG40/GGG50/CF8/CF8M/CF3/CF3M

Stem:F6a/SS304/SS316/17-4PH

Gate:SS304/SS316/17-4PH

Actuation:hand wheel/Bevel Gear/Air Cylinder/Hydraulic Cylinder/Electric actuator


  • Product Detail

Through Conduit Knife Gate Valve is a two pieces body without retention area, with two seat seals which allow a bi-directional tightness. This valve is especially adapted for the pulp and paper industry, in pulp outlets or under silos. The principal of the gate’s movement works like a “cigar cutter”.


Features:

Special L shaped replaceable seat

Manual valves have stem protection tube

Gearbox included on DN400 and above

Gate Protection device included on air actuated and Hydraulic actuated valves
