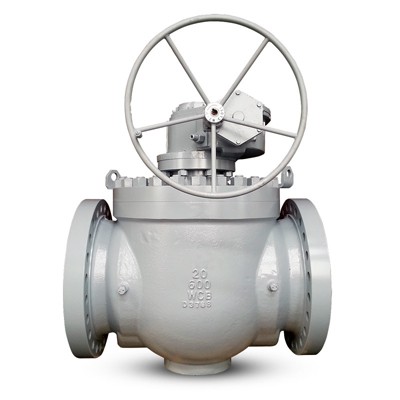

Top Entry Ball Valve

Top Entry Ball Valve


Ball Valve Size: NPS 2" - 56"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


  • Product Detail


VITAL full line of API-6D Trunnion Mounted ball valves Top Entry one piece body design. We offer a full range of materials in carbon, alloy and stainless steel from general to severe in application. Including Sub Sea.



DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, Butt Weld Ends

· Cast Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
