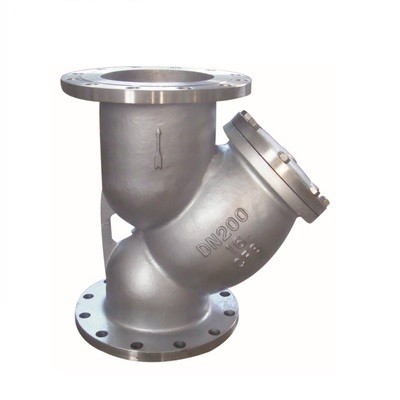

Y Strainer

Size Range: 2” – 48”
Pressure Class: ASME 150 – 2500
Design Standards: API/GOST/DIN
ASME B16.34
Available Material: CS, SS, Duplex SS, Inconel
  • Product Detail

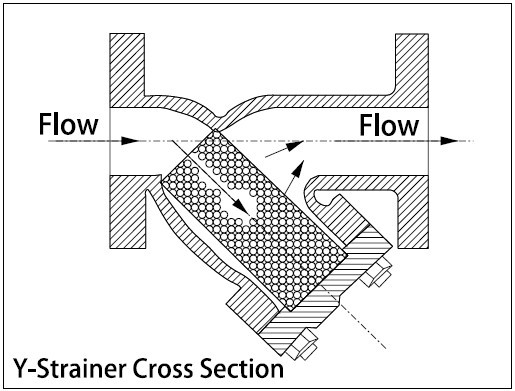

Y-Strainers are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.

Y-Strainers are very cost effective straining solutions in many applications. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap. For applications with heavier dirt loading, Y-Strainers can be fitted with a "blow-off" connection that permits the screen to be cleaned without removing it from the strainer body.

Y-Strainers are used in a wide variety of liquid straining applications to protect downstream process system components in many industries, including: chemical processing, petroleum, power generation and marine. Water handling applications, where Y-Strainers are used to protect equipment that could be damaged or clogged by unwanted sand, gravel or other debris, are very common.





·Pulp & Paper

·LNG & Cryogenics

·Fossil &Cogeneration Power
