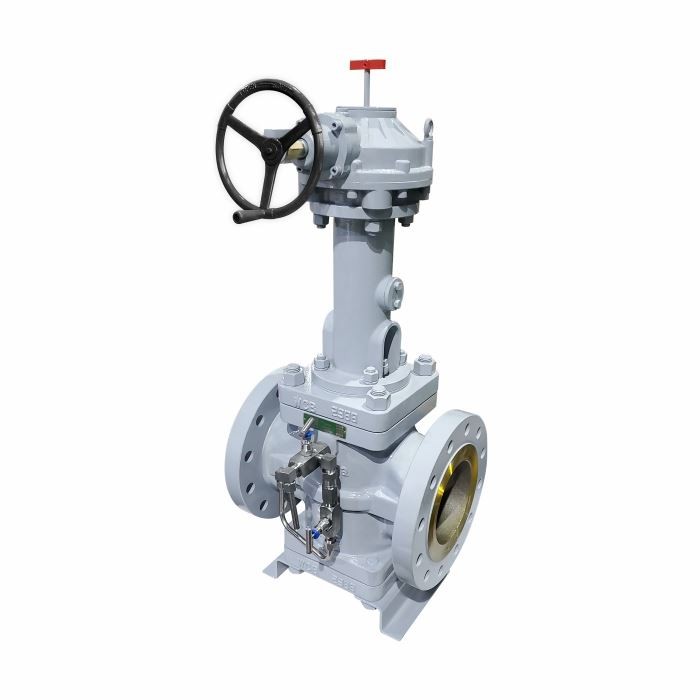

Dual Expanding Plug Valve

Dual Expanding Plug Valve

Plug Valve Size: NPS 2" - 56"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


  • Product Detail

VITAL plug valve is a cone or cylinder-shaped valve that uses a rotator inside the valve body to control flow of fluids. Plug valves have at least one hollow passageway to allow flow through the open valve, most often horizontally. This type of valve is especially useful for high pressure scenarios.

The double seal structure of the double seal plug valve is not just shown in the double disc, but more importantly, the sealing surface of each disc has both soft and hard seal types, and the precision of the hard seal is not lower than Level 4, which not only ensures the valve's zero leakage but also makes it fireproof. As shown in Fig.l, Fig.a is the soft seal shape in the open state while Fig.b is the soft seal shape in the closed state. It can be seen from the figure that the soft seal(rubber) is embedded in the grooves of the disc, raised in the middle and concave on both sides; that is in favor of the soft seal being compressed and flowing to the grooves on both sides during the valve's closing process to finally form a hard seal; its advantage is to protect the soft seal from being crushed and meanwhile to ensure to realize the hard seal.

The good sealing performance of the double seal plug valve can ensure the pump's stable working state and avoid "flow cutoff for air resistance", which has been repeatedly confirmed by our users.


DESIGN FEATURES:
>Inverted Plug
>Good sealing performance and lower valve torque
>By injecting lubricant into body cavity
>Deformed plug can be adjusted through the screw
>At the bottom
>Plug coated with PTFE/ENP
>Anti-static and fire safe design
>Available options: Jacket Sleeved Plug Valve, Lift Plug Valve, Eccentric Plug Valve, DBB Plug Valve, 3 Way Plug Valve, PFA Lined Plug Valve
