Globe Control Valve

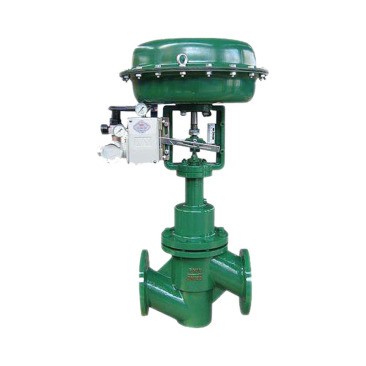

Fluorine Lined Pneumatic Bellows Diaphragm Flow Control Valve

Fluorine lined pneumatic bellows diaphragm flow control valve is lined with fluorine plastic inside to improve the valve's corrosion resistance. The valve disc is connected with the actuator through the bellows. When the actuator acts on the bellows, the bellows will deform, thus controlling the opening and closing of the valve disc, and then controlling the flow of fluid.

Design Standard:ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard: ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Thread Standard: GB/T 12716-1991 NPT, GB/T 7306-2000 PT, GB/T 7307-2001 G, DIN 2999, JIS B0203, NF E03-005, etc

Actuator Standard: ANSI/ISA-75.25, BS EN ISO 5211, DIN EN ISO 5211, JIS B 8391, EN ISO 5211, GB/T 12222, JB/T 9093, JB/T 8861, etc
