Globe Control Valve

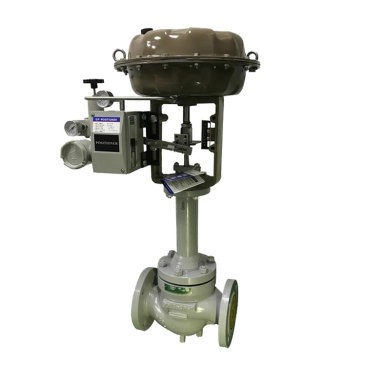

Pneumatic Balanced Labyrinth Control Valve

Balanced labyrinth control valve features a labyrinth cage with a balanced spool design. The labyrinth sleeve consists of a cylindrical disc with a plurality of coaxial surfaces distributed with a labyrinth. According to the different process parameters of the medium, the different labyrinth diameter specifications and the number of laminated layers are designed to form a cage. The cage divides the total flow passage into a number of small or even stepped throttle passages, forcing the fluid to continuously change the flow direction.

Design Standard:ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard: ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Thread Standard: GB/T 12716-1991 NPT, GB/T 7306-2000 PT, GB/T 7307-2001 G, DIN 2999, JIS B0203, NF E03-005, etc

Actuator Standard: ANSI/ISA-75.25, BS EN ISO 5211, DIN EN ISO 5211, JIS B 8391, EN ISO 5211, GB/T 12222, JB/T 9093, JB/T 8861, etc
