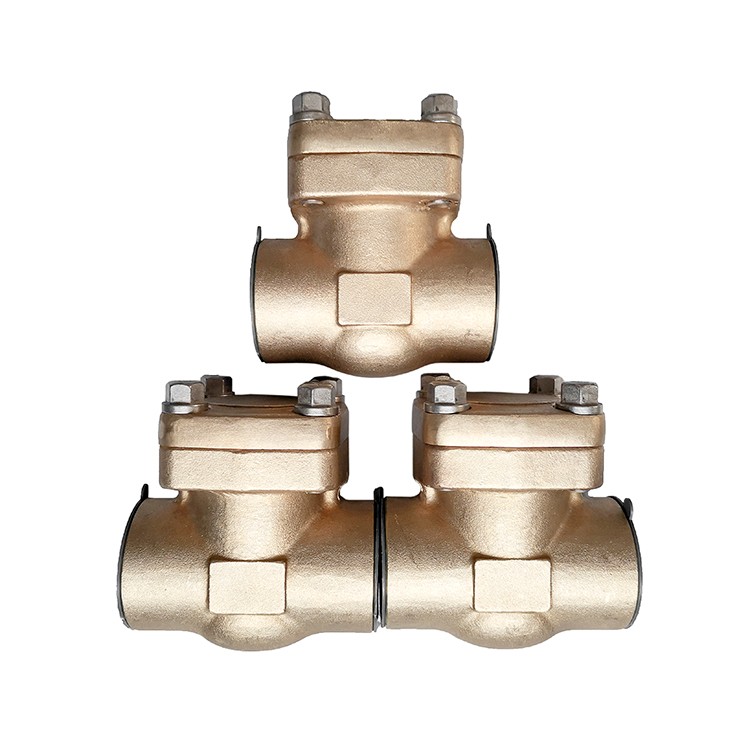

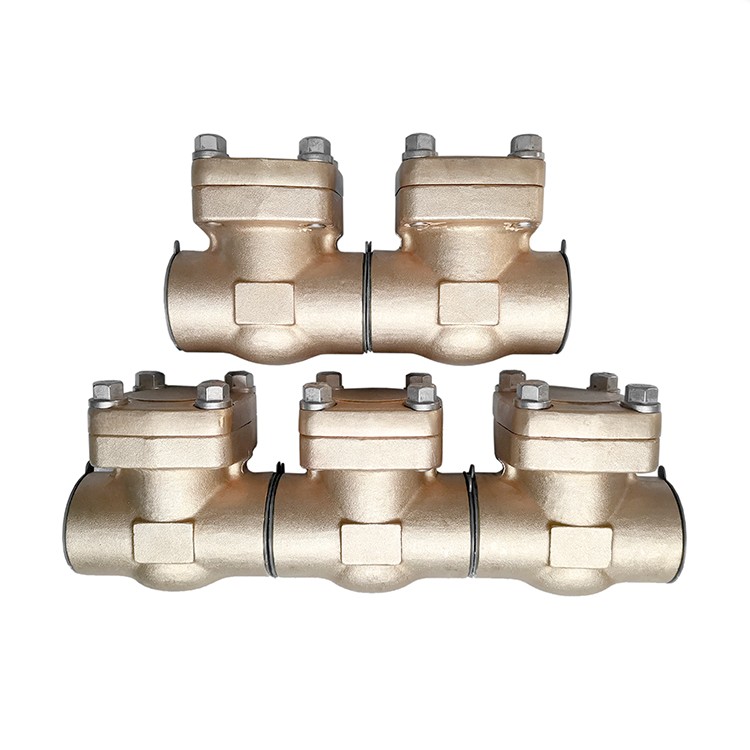

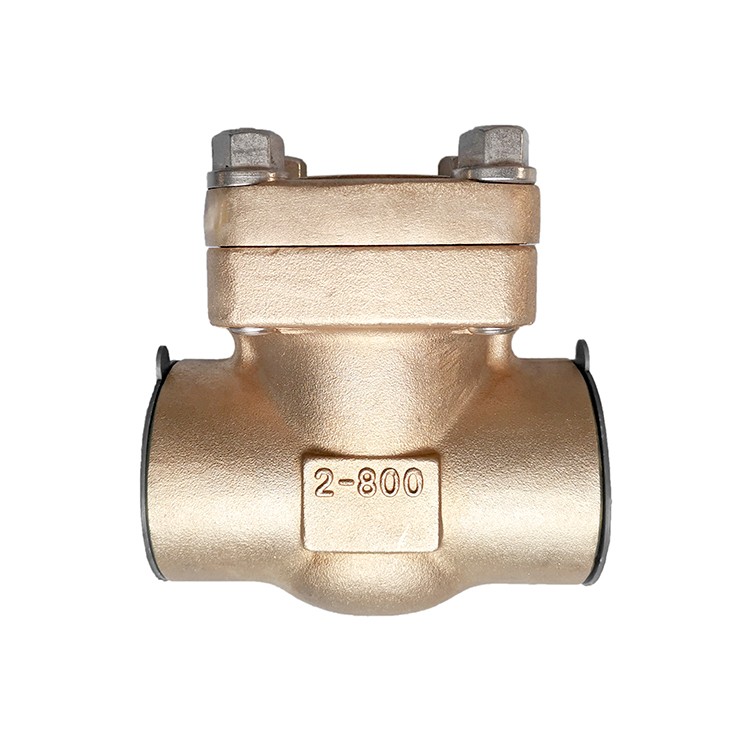

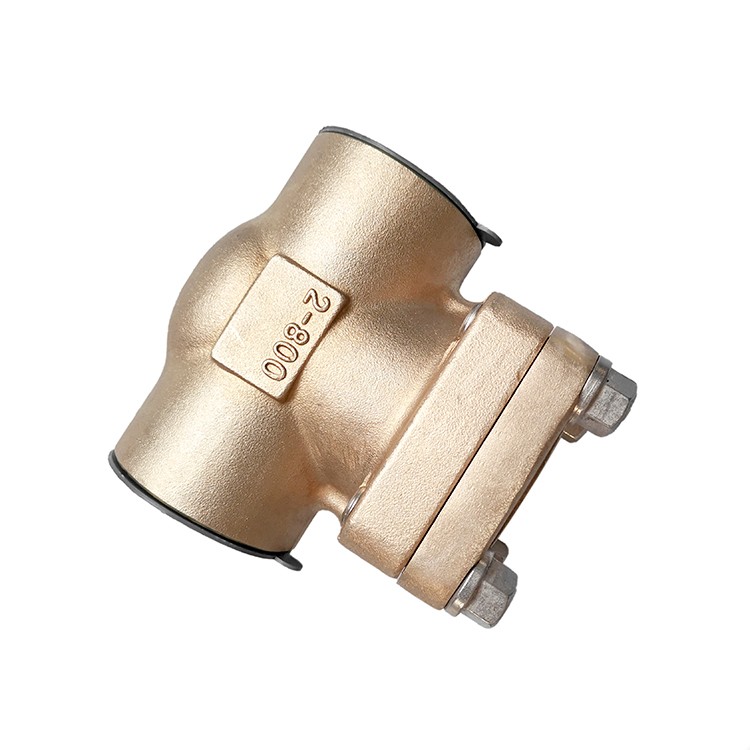

Forged Steel Check Valve

Forged Steel Bronze Check Valve

Globe Valve Size: NPS 1/2" - 2"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: API 602
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator
  • Product Detail

Vital Valves is an industrial gate valve manufacturer and supplier in various materials such as: bronze, iron, stainless steel and cast steel. Vital Valves features high pressure gate valves in two different forms, parallel and wedge-shaped. Parallel gate valves are used to control the flow pressure while Wedge gate valves are most commonly used and allow for fluids to be tightly shut off. Our gate valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.


Aluminum bronze swing check valves are used in numerous applications where liquid must pass in only one direction for safety purposes and to prevent reverse flow. We offer several types of high-performance check valves in a range of functionality types, material construction, and sizes for commercial, process industries, and utilities.


ADVANTAGES:

Aluminum bronze is the highest strength standard copper based alloy. Produces C95400, C95500 and C95900 in standard sizes of rounds, tubes, and rectangles. Aluminum in conjunction with iron and nickel in Aluminum bronze threaded gate valve acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
