Forged Steel Gate Valve

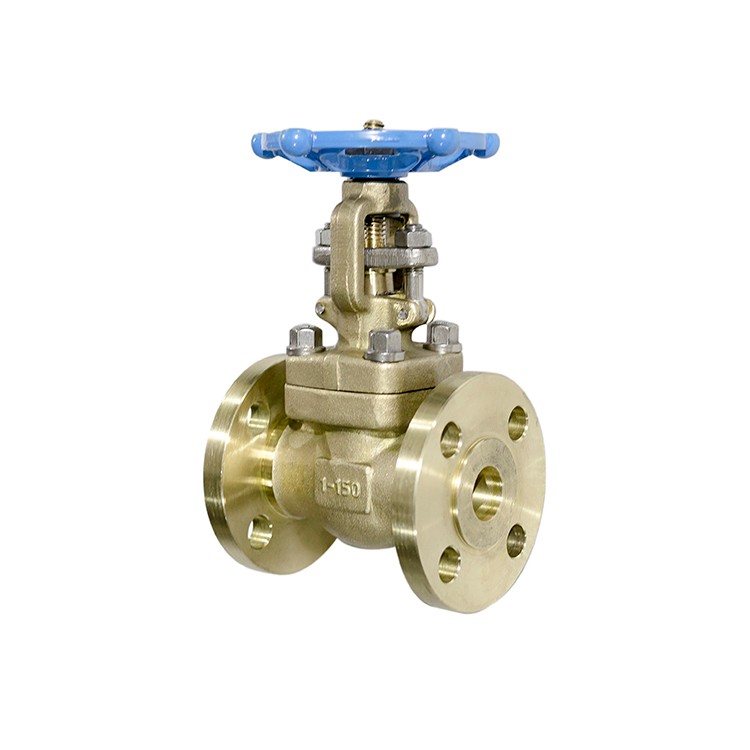

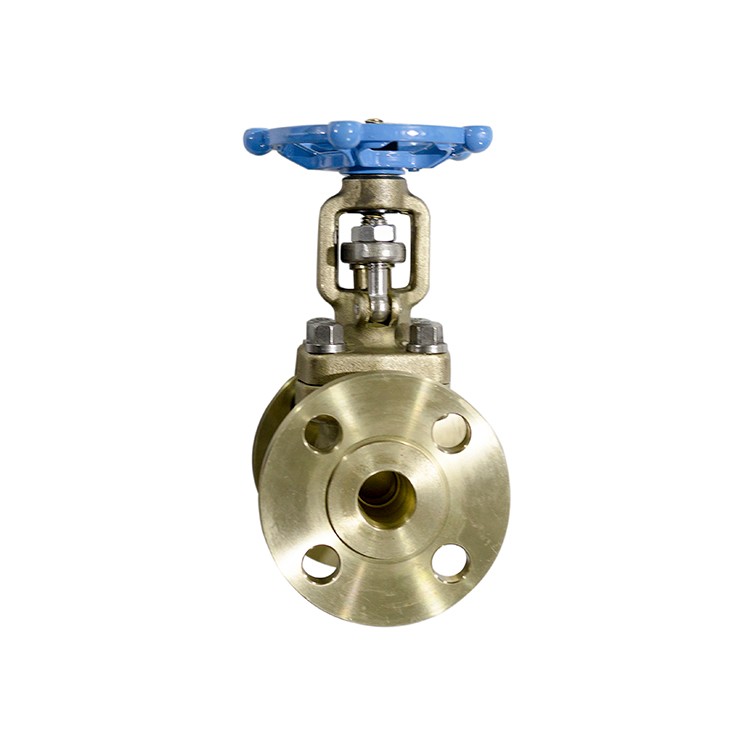

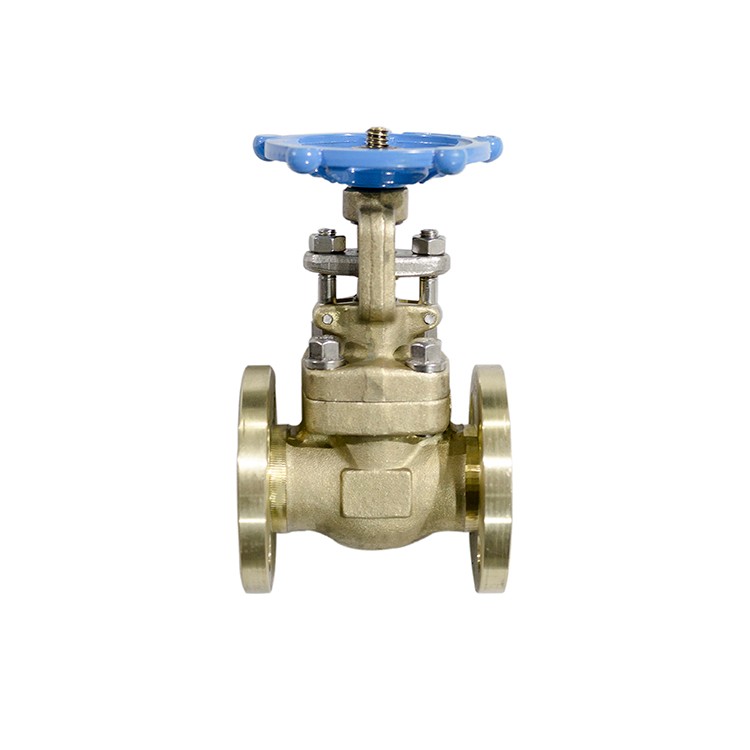

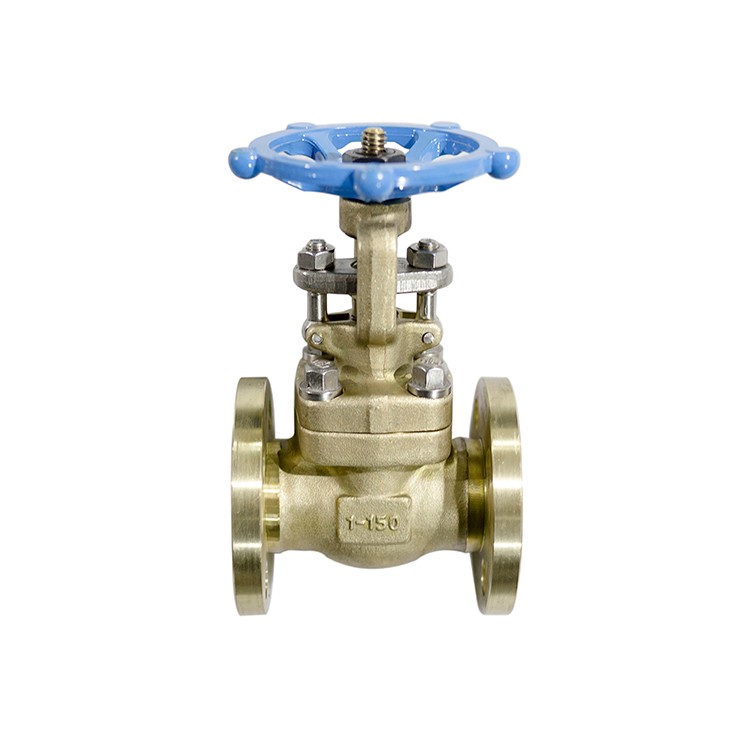

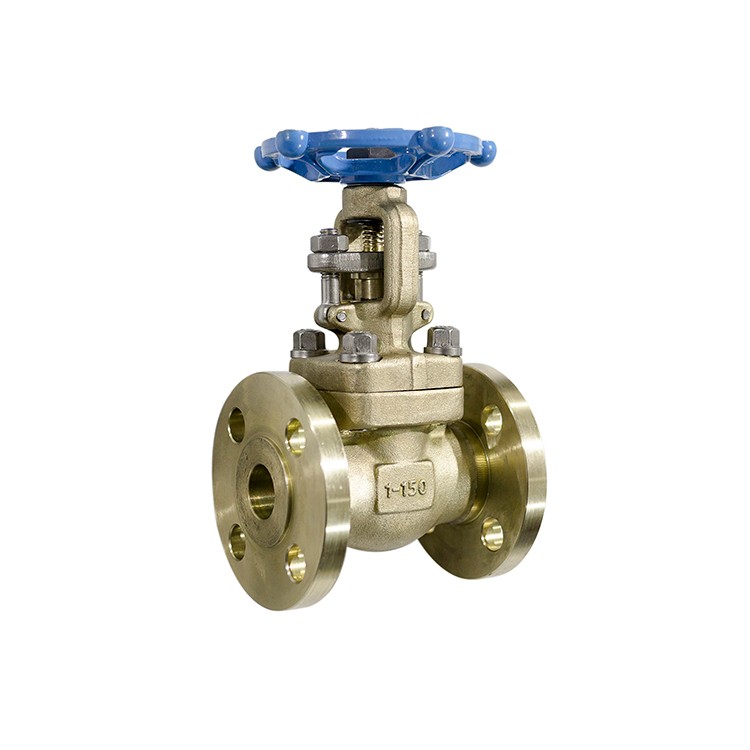

Forged Steel Bronze Gate Valve RF Class 150

Gate Valve Size: NPS 1/2" - 2"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: API 602
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator

  • Product Detail

Vital Valves is an industrial gate valve manufacturer and supplier in various materials such as: bronze, iron, stainless steel and cast steel. Vital Valves features high pressure Gate Valves in two different forms, parallel and wedge-shaped. Parallel Gate Valves are used to control the flow pressure while Wedge Gate Valves are most commonly used and allow for fluids to be tightly shut off. Our gate valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.

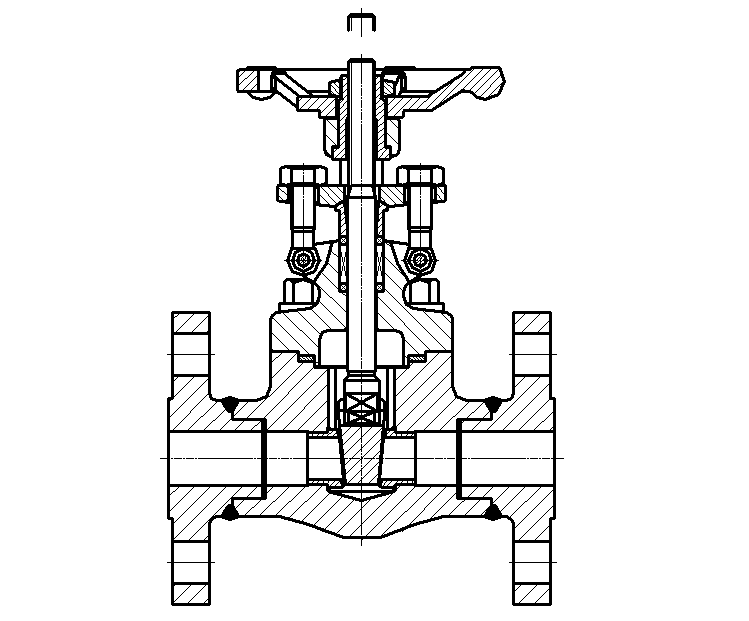

Aluminum bronze threaded gate valves are used as replacement for many Monel, duplex and super duplex grade valves. These are used mostly in sea water, salt water, brackish water and highly corrosive applications. The valves are cheaper compared to the other higher alloys. Larger diameter valves are available in different aluminum bronze grades. Aluminum bronze threaded gate valves use a gate to operate the valve. The gate opens or closes the valve and is connected to the valve stem. The valve stem is fitted with a handle which moves the stem in up or down and the gate opens and closes the valve.


ADVANTAGES:

Aluminum bronze is the highest strength standard copper based alloy. Produces C95400, C95500 and C95900 in standard sizes of rounds, tubes, and rectangles. Aluminum in conjunction with iron and nickel in Aluminum bronze threaded gate valve acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
