PTFE Lined Butterfly Valve

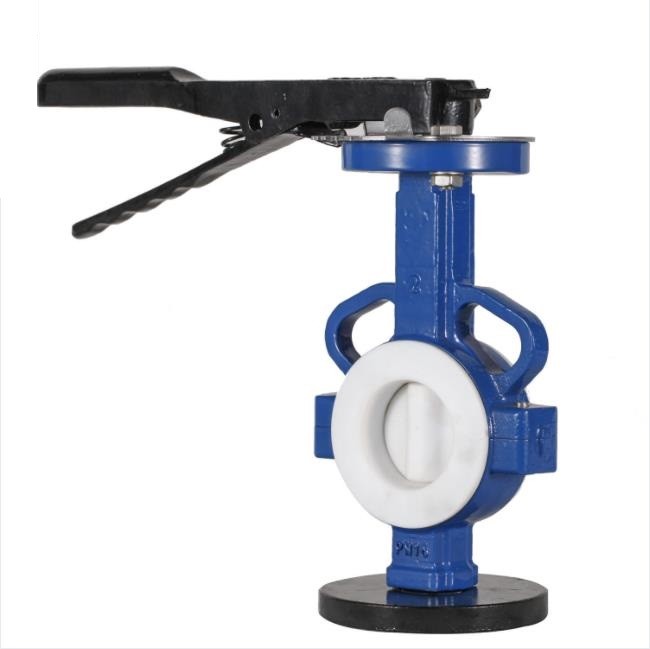

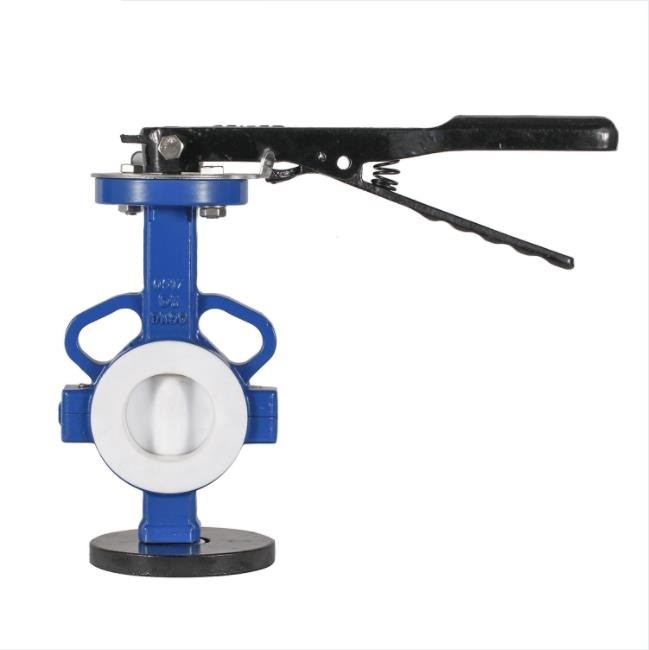

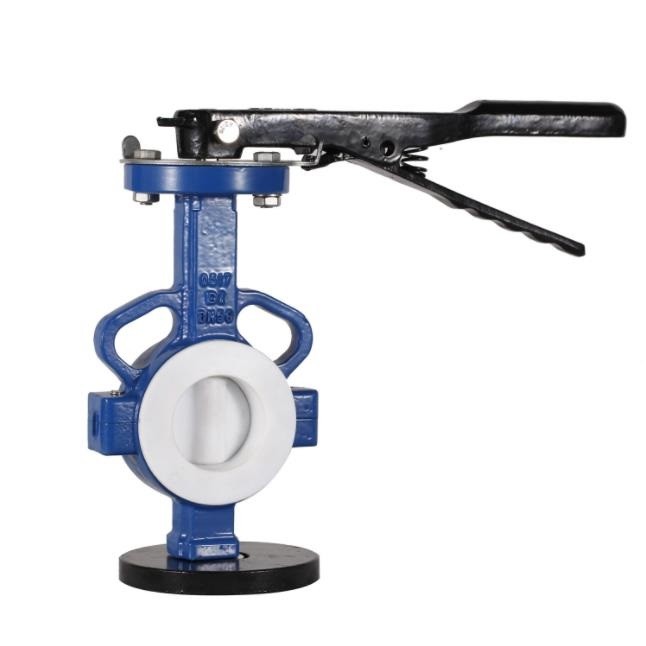

PTFE Lined Wafer Butterfly Valve

Butterfly Valve Size: NPS 2" - 120"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: GGG40, GGG50, WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 609
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

  • Product Detail

VITAL butterfly valve is an open or close 1/4 turn valve which also allows you to do regulation. These valves are especially adapted for general uses and non-viscous industrial fluids.


· Upper and Lower Bearings to maximize valve life

· Integral ISO mounting pad for easy valve operation no bracket needed

· Each valve is shell and seat pressure tested per industry standard API 598

· Available in Wafer and Lug styles

· Seat Materials: Multiple seat materials available.


· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Pow
