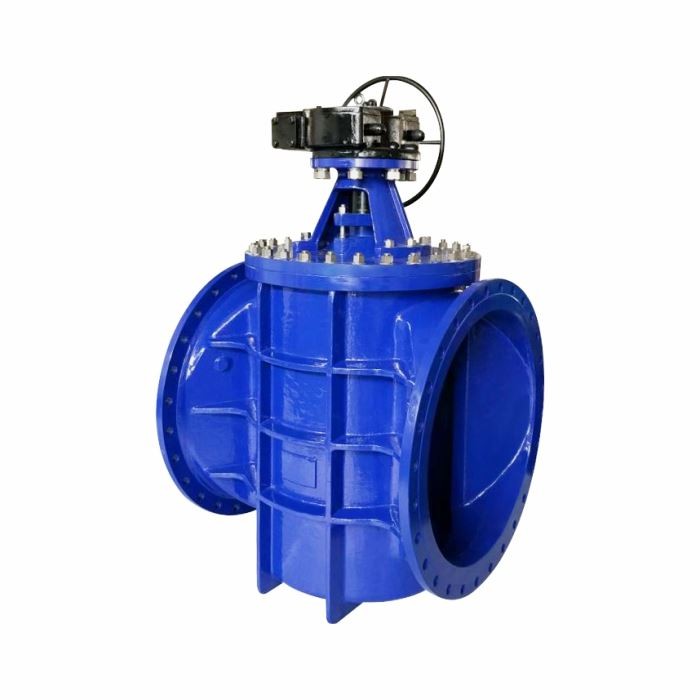

Elastic Seat Eccentric Plug Valve

Elastic Seat Eccentric Plug Valve

Plug Valve Size: NPS 2" - 56"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF8C, SS321, 904L, CN3MN, ALLOY 20, SS2205, SS2507, SS2570, C95800, C55500, C95400, INCONEL 625, INCONEL 825
Design and Manufacture: API 6D
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

  • Product Detail

Elastic seat ring sealed eccentric plug valve is a new structure valve which fills the blank of traditional plunger valve and ball valve in the applications like large- diameter pipeline (above DN200] and muddy water and sludge occasions. Owing to its excellent sealing performance and corrosion-resisting performance, smaller opening/closing torque and water-flow loss and long service life, it is applied as the regulator or closure in the work occasions such as urban sewage, industrial sewage, sludge and clear water.
